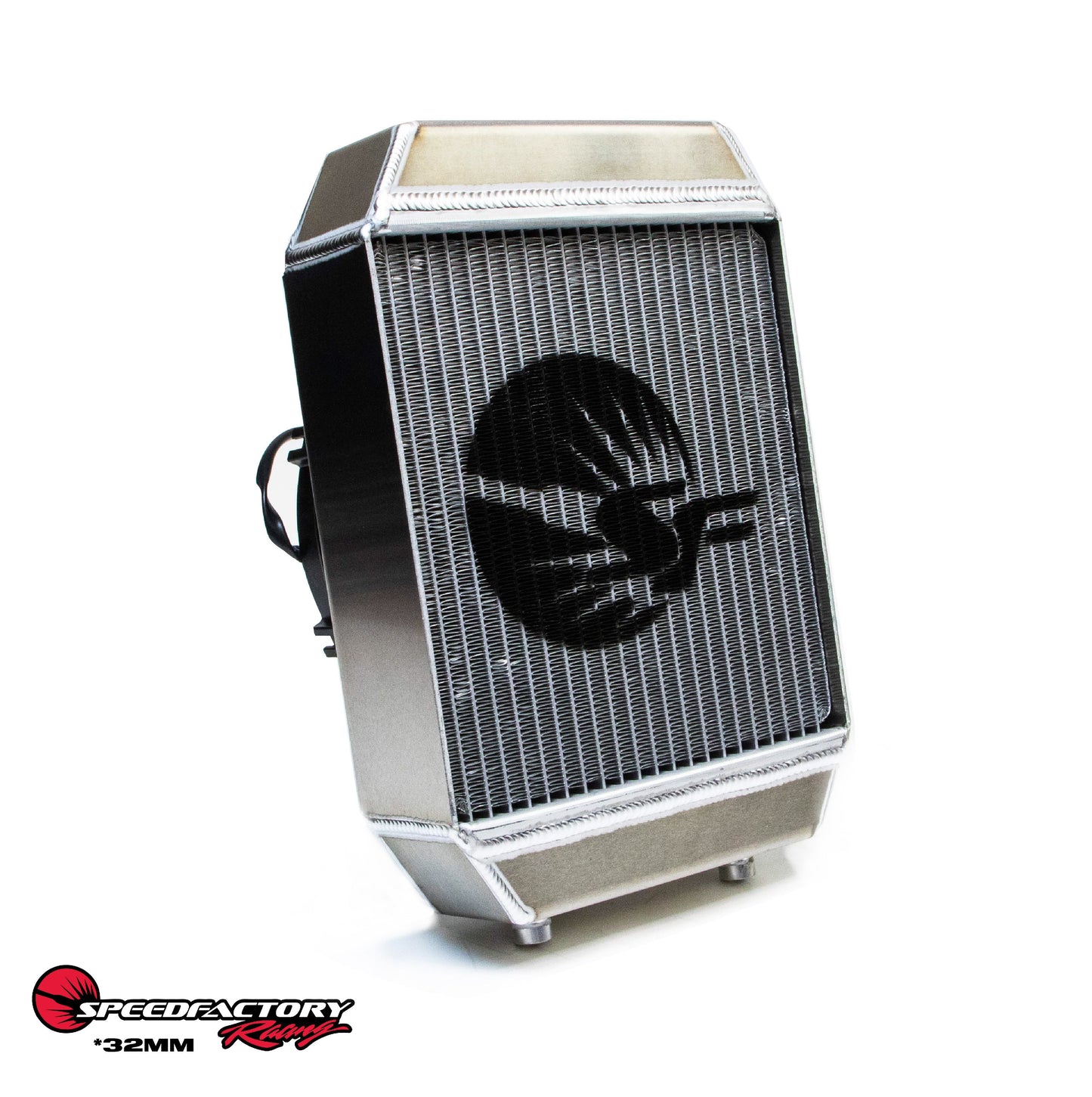

SpeedFactory Racing Universal Aluminum Race Radiator

The SpeedFactory Racing Universal Aluminum Race Radiator is a must have when trying to utilize precious engine bay space. It's unique design and compact size allow you to mount it almost anywhere to suit your custom setup's needs. This radiator is engineered for racing applications and provides lower coolant temperatures in extreme environments and conditions when your engine needs it most.

The radiator tanks are CAD designed and hand formed from H-3 5052 aluminum and each top tank features our CNC engraved logo. Each radiator assembly is professionally TIG welded and pressure tested in house for quality assurance.

-Universal application

-Available with 32mm inlet/outlet (for standard radiator hoses) or -16AN male fittings

- Radiator drain fitting is -6AN ORB (O-Ring Boss)

- For our Race Radiator Hose and Fitting Kit, please click HERE

- For complete Race Radiator kits (with Hose & Fitting Kit, Fill Neck, and Thermostat Housing) please click HERE

-This radiator was specifically engineered for track and show applications, but can also be used in street setups where space is limited.

-SPAL Fan and SpeedFactory Radiator Shroud are included for maximum cooling efficiency.

- SPAL Fan Specifications: 9" Low-Profile Straight Blade Puller Fan, 590CFM.

-Proudly made in the USA.

-Overall dimensions 14.5" tall x 10" wide x 3" thick (with fan & shroud combo 5 1/2" thick)

- (2) M8 x 1.25mm billet aluminum mounting bungs are attached for mounting convenience.

-Unparalleled quality and race proven performance
